The DS3225 Digital Servo is a powerful and reliable component designed for high-performance applications like RC cars, robots, mechanical arms, and more. With a high torque output of up to 25 kg-cm, this servo delivers exceptional performance, handling heavy loads with ease. Whether you're upgrading your remote control car or building a robotic arm, the DS3225 is built to provide the strength and durability required for these demanding tasks.

Key Features:

• High Torque: With a torque of 25 kg-cm at 6.8V, this servo offers robust performance for heavy-duty tasks. At 5.0V, it delivers a still impressive 21 kg-cm of torque.

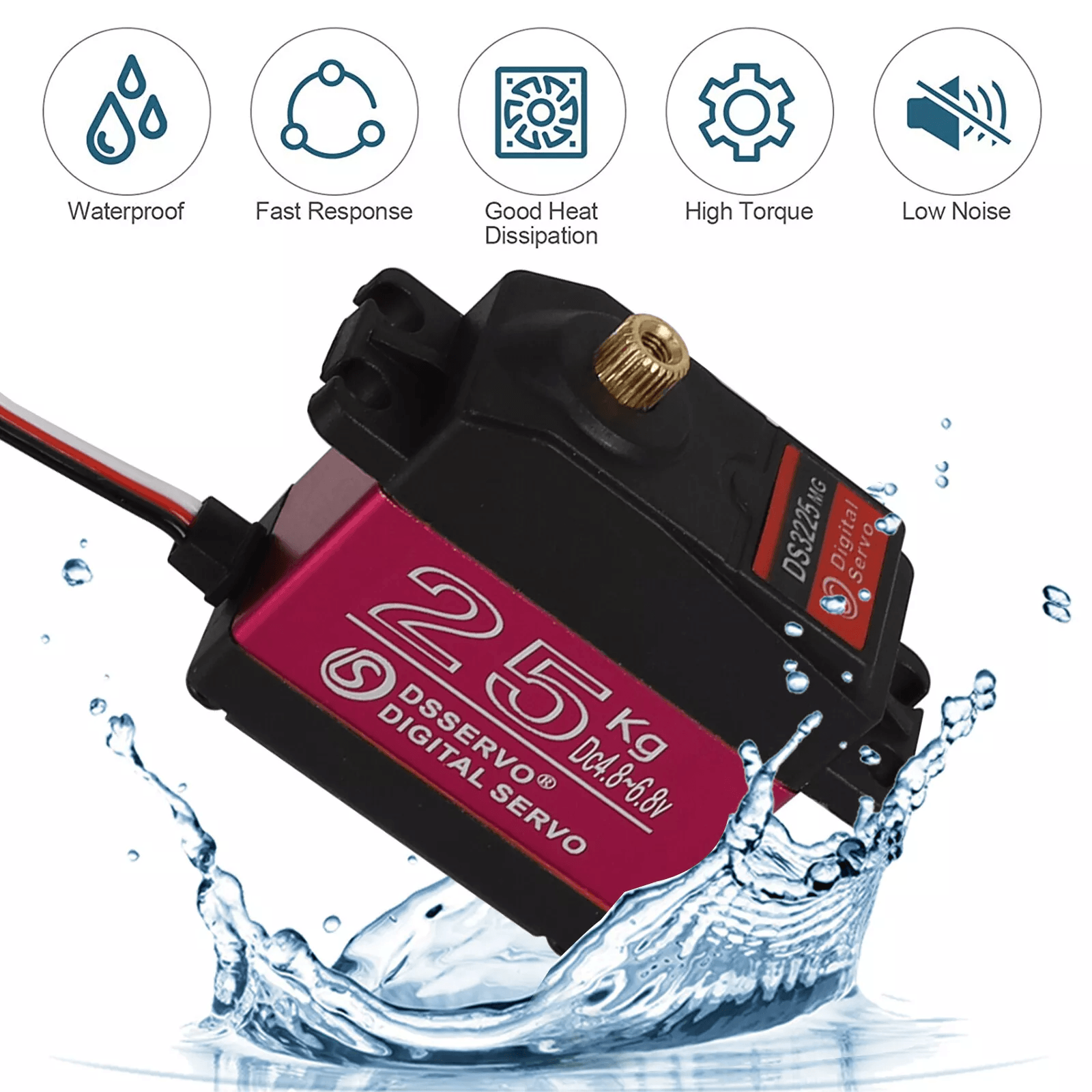

• Waterproof Design: The waterproof construction ensures that this servo is ideal for outdoor environments, protecting against water exposure and ensuring reliability even in damp conditions.

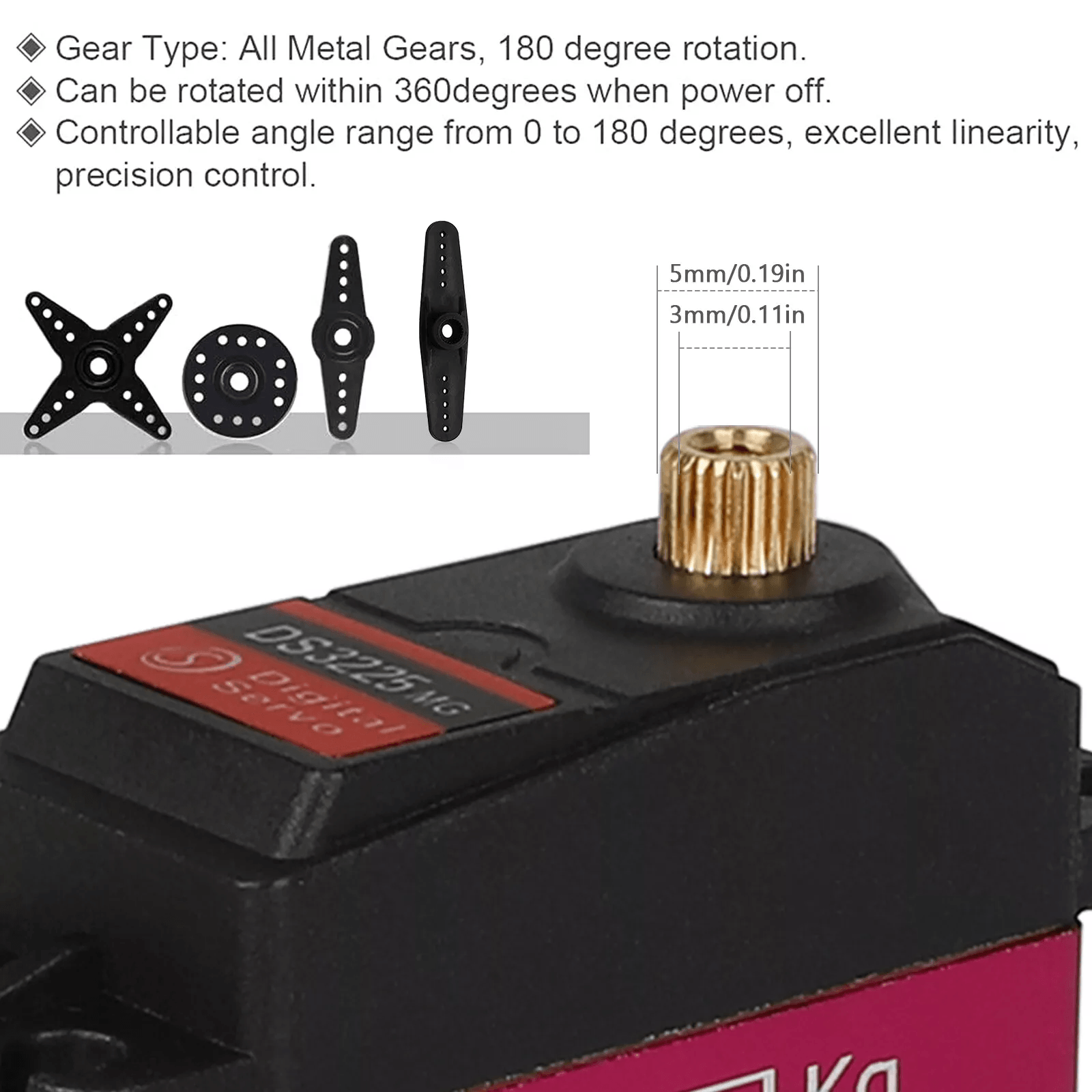

• Metal Gear System: Featuring durable metal gears, this servo offers enhanced longevity and resistance to wear. Metal gears are more robust than plastic ones, ensuring better endurance and less maintenance over time.

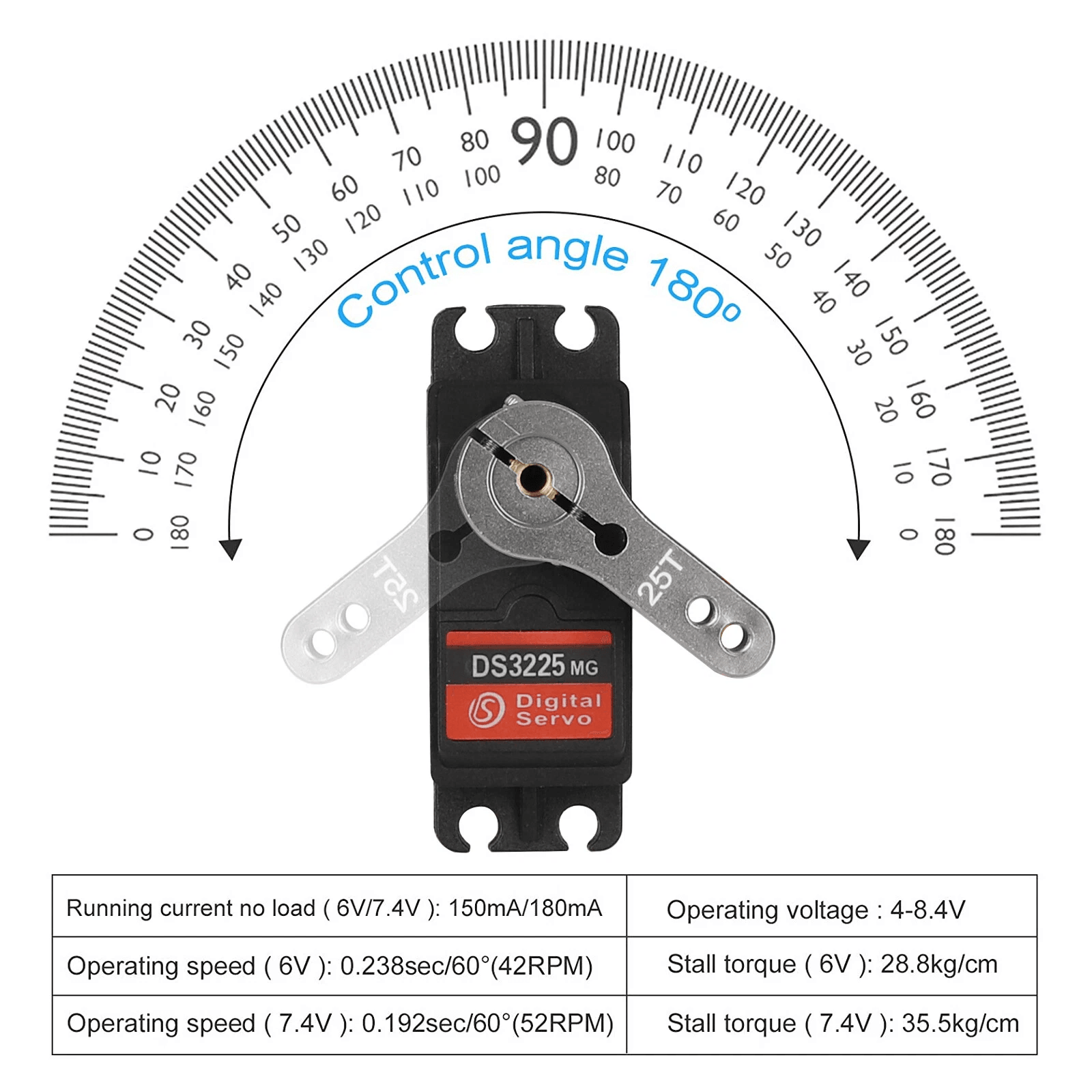

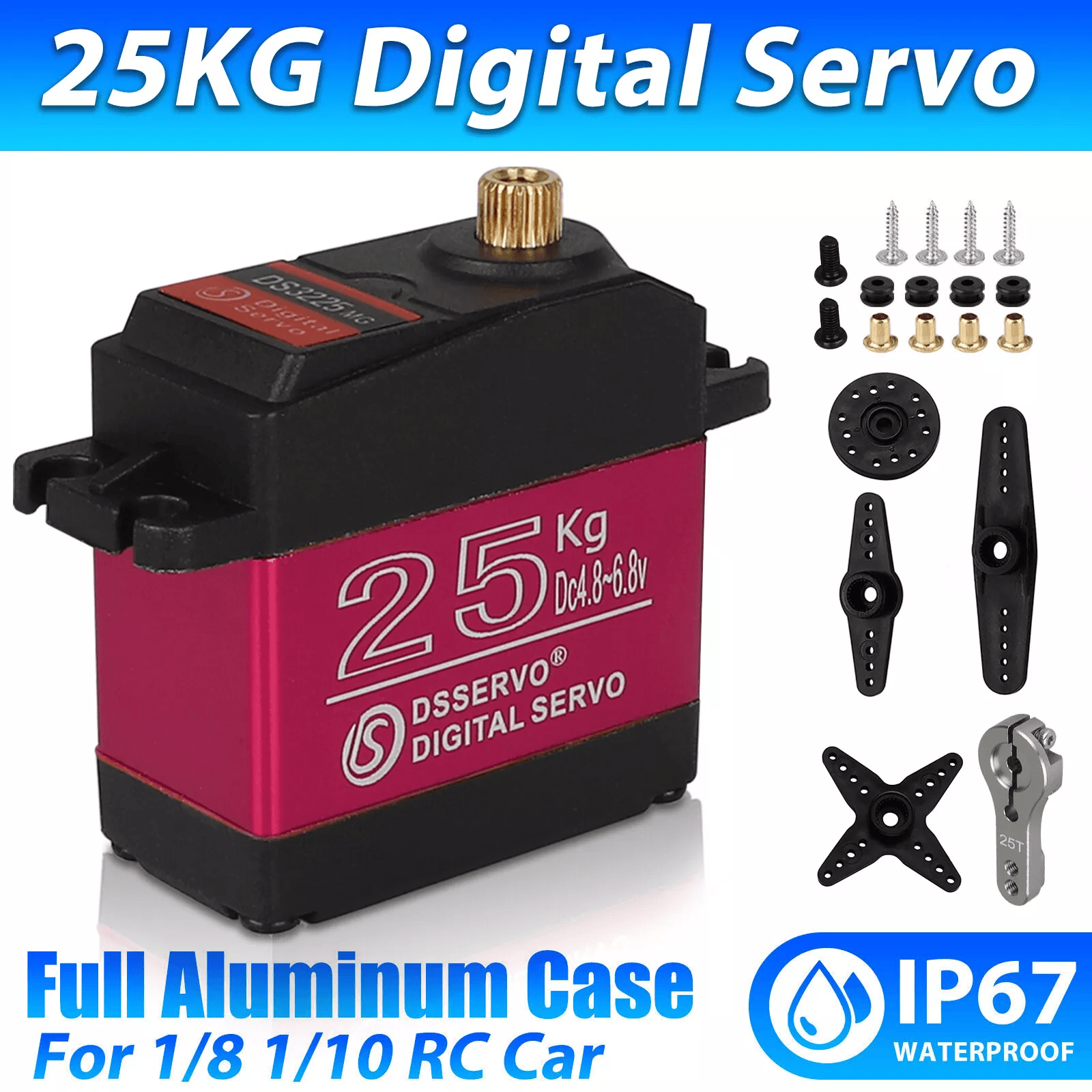

• Adjustable Servo Horn: The servo comes with an adjustable servo horn, allowing you to modify the angle to fit specific needs, making it versatile for various applications.

• Versatile Use: Perfect for use in robotic arms, RC cars, climbing cars, and other mechanical or remote-controlled toys. The DS3225 digital servo can handle both precision and strength.



With a compact size of 40 x 20 x 40.5mm, the DS3225 is small but mighty, fitting into various designs while offering high-speed operation. It has an impressive operating speed of 0.13 sec/60 degree at 6.8V and 0.15 sec/60 degree at 5.0V, making it a fast and efficient choice for dynamic, real-time applications.

Product Specifications:

• Type: Digital Servo (DS3225)

• Operating Voltage: 4.8 - 6.8V

• Operating Speed (5.0V): 0.15 sec/60°

• Operating Speed (6.8V): 0.13 sec/60°

• Stall Torque (5.0V): 21 kg/cm

• Stall Torque (6.8V): 25 kg/cm

• Dead Band: 3s

• Working Frequency: 50-333Hz

• Gear Type: Metal

• Motor Type: DC Motor

• Dimensions: 40 x 20 x 40.5mm (1.58 x 0.79 x 1.60 in)



For those in need of a high torque servo for rugged or precision tasks, the DS3225 digital servo offers unbeatable value, combining durability, speed, and resistance to the elements. Add this reliable servo to your RC vehicles or robotic projects today and see the difference it makes!
